The Basics of the DC Current Shunt Assembly

The Basics of the DC Current Shunt Assembly

Update:2022-10-08
Summary:The DC Current Shunt Assembly is a special resistor that is wired in series with a heavy load. The D...
The DC Current Shunt Assembly is a special resistor that is wired in series with a heavy load. The DC voltmeter is then connected to the shunt in a 4-wire configuration. The meter's leads are usually finer gauge than the leads in the load circuit. It is preferred to locate the shunt on the grounded side of the load. This will minimize the voltage drop at the shunt and meter connections.
To connect the shunt, you must first power the circuit to ensure that the meter is able to handle the same mV levels. Then, connect the battery pack to the right side of the shunt. After connecting the two, you can then connect the meter to the load and measure the current.
The shunts used in an electrical installation must be close to the battery for the best accuracy. The shunt should be able to measure the entire current going into and out of the battery. It should also be able to detect voltages below 200 milliamps. The shunts can range in size and rated current. The five-shunt on the left is usually used for CP rectifiers, while the three smaller ones on the right are commonly used in anode junction boxes.
When using a shunt, it is imperative to choose the right shunt resistor for the application. Resistors are available in a variety of materials, including metal oxide, carbon film, ceramic, and metal alloy. A metal oxide shunt resistor, for example, is composed of a material that is insulating. It is also important to consider the voltage divider for the shunt. It will protect the measurement instrument from a common mode voltage, which is potentially damaging to the instrument.
Shunts are useful in monitoring and testing DC current. They provide a convenient way to monitor high-current circuits. They can be calibrated by measuring the voltage drop across them. They can also be used to monitor power output and to reduce high-frequency noise in power output circuits. They can also protect a circuit from overload.
Shunts are made of copper or manganin. Manganin is preferred for shunts with exposed blades, since it has a low temperature coefficient. Zeranin, on the other hand, is used for shunts with parallel wires. Evanohm, which has a very low temperature coefficient and a high sensitivity to strain, is another material that can be used in shunts.
Shunts are often used in battery monitors to measure the amount of energy flow in a battery system. Most battery monitors require that the shunt is connected to the negative side of the battery terminal. This allows the monitor to calculate the charge and remaining energy. It also displays electricity consumption in real-time.

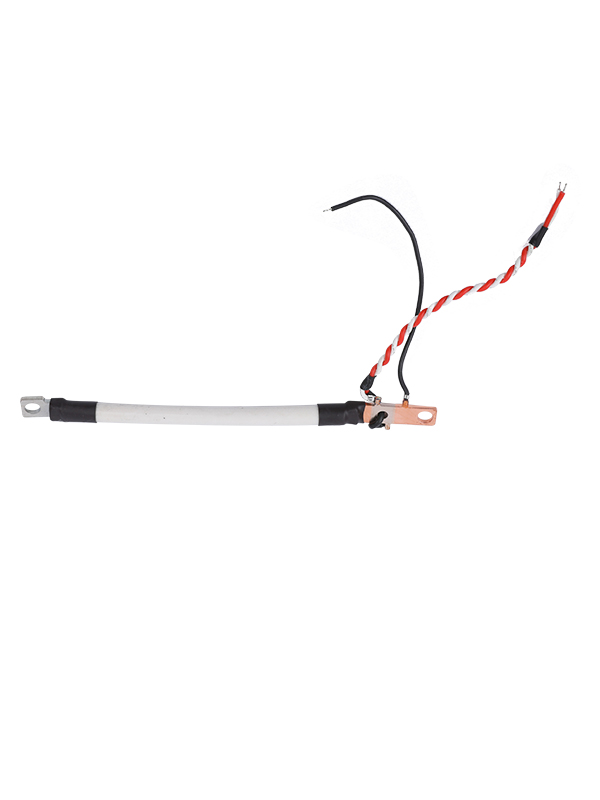

Welding brush shunt assembly
Welding brush shunt assembly

Product:  Shunt component
Composition:  shrinkable tube, silicone tube, etc.
Material:  Copper, manganese copper
Accuracy:  ± 5%
Process:  Electron beam welding, brazing
Production:  Production and processing
