The Shunt in Energy Meters

The Shunt in Energy Meters

Summary:Energy meters, those unassuming devices often found in utility rooms or electrical cabinets, play a ...
Energy meters, those unassuming devices often found in utility rooms or electrical cabinets, play a crucial role in measuring and monitoring electrical consumption. Within these meters, a tiny but vital component called the shunt quietly works its magic, enabling accurate measurement of electricity usage. In this article, we'll explore what a shunt is, how it functions, and why it's indispensable in energy meters.

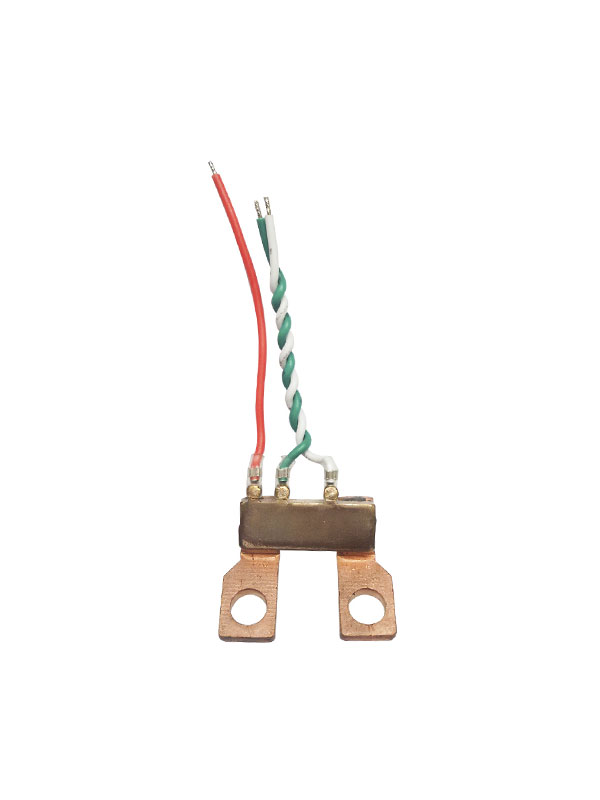

At its core, a shunt is a low-resistance electrical component, usually a precision resistor, strategically placed within the electrical circuit. Its primary function is to measure the current flowing through a circuit by creating a voltage drop proportional to that current. The voltage drop across the shunt is then measured and used to calculate the current, which is an essential parameter for determining power consumption.

Current Measurement: When electrical current flows through the circuit, it also flows through the shunt. The shunt's low resistance ensures that only a small fraction of the current takes this path, creating minimal power loss.

Voltage Drop: As the current passes through the shunt, it encounters resistance. According to Ohm's law (V = I * R), this results in a voltage drop across the shunt that is directly proportional to the current passing through it.

Voltage Sensing: The voltage drop is then sensed and measured by the energy meter's internal circuitry. This voltage reading is translated into an accurate measurement of the current, which is crucial for calculating power consumption.

Accuracy: Shunts are precision components designed to have a known and stable resistance value. This ensures accurate current measurement, which is essential for calculating power consumption and billing accurately.

Minimal Energy Loss: Shunts are engineered to have low resistance, meaning that only a small amount of electrical energy is dissipated as heat when current flows through them. This minimizes power loss within the energy meter.

Longevity: Shunts are robust and durable components that can withstand the rigors of continuous electrical measurement over extended periods.

Wide Range of Applications: Shunts are used in various types of energy meters, including residential, commercial, and industrial meters, making them versatile components in the field of electrical measurement.

Ease of Calibration: Shunts can be precisely calibrated to ensure their accuracy over time, allowing energy meters to maintain consistent performance.
