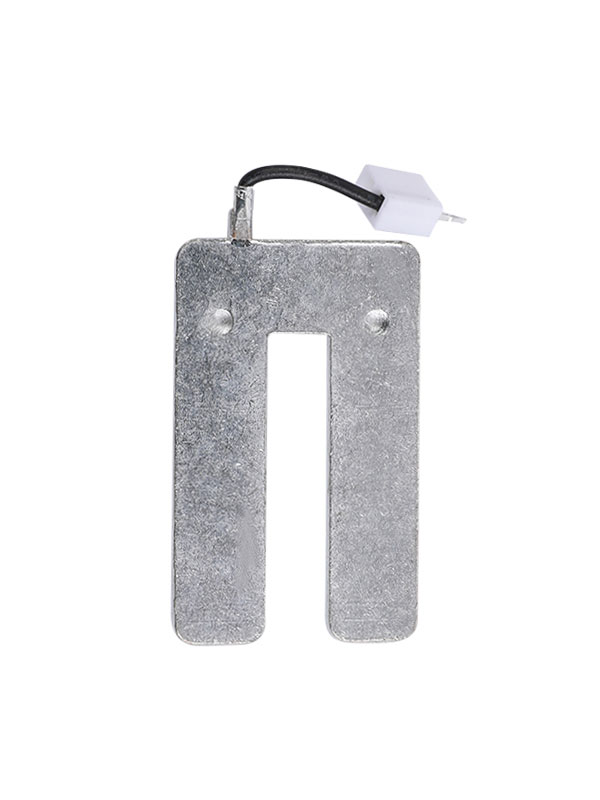

Neutral connecting piece

Neutral connecting piece

Neutral connecting piece

Haiyan Weijia Electrical Technology Co., Ltd.

A neutral connecting piece manganese copper shunt is a device that is used to measure electrical current in high-power applications, specifically in the electrical distribution system. It typically consists of a manganese copper alloy, which has a low electrical resistance. This allows for accurate measurement of high current levels while generating minimal heat. The shunt is connected in parallel with the load being measured, and the voltage across the shunt is used to calculate the current flowing through the load.

A neutral connecting piece is used to connect the shunt to the neutral point of the electrical distribution system, allowing for measurement of the current flowing through the neutral conductor. It is a key component of the current measurement setup, ensuring a safe and secure connection to the distribution system.

In summary, a neutral connecting piece manganese copper shunt is a device to measure the current flowing in an electrical distribution system and made of manganese copper alloy with low resistance also is designed with a neutral connecting piece that connects to the neutral point for accurate current measurement.

Product Details



Product:  Manganese copper shunt
Material:  Copper, manganese copper
Accuracy:  ± 5%
Process:  Electron beam welding, brazing
Production: Production and processing



about us

Haiyan Weijia Electric Technology Co., Ltd is a professional China Energy Meter Shunts Manufacturers and 350 micro ohm shunts factory, covers an area of 13 acres, with a total construction area of about 12,000 square meters and more than 200 employees. The company mainly produces in-meter accessories such as current transformers, manganese-copper shunts ,wholesale prepayment meter shunts and magnetic holding relays. The transformer production capacity is 80,000 per day, shunts are 50,000 per day, and 20,000 relays per day. The company invests millions of dollars each year in equipment upgrades, production process improvements and new product development. Currently has dozens of technical patents, enterprise management passed ISO9001 certification, relays and transformers obtained CE EU certification.
