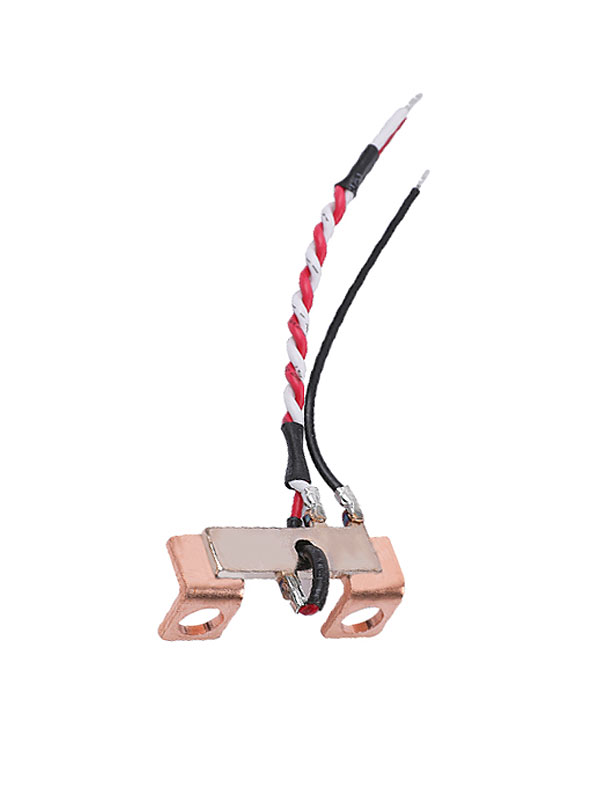

100~600 μΩ Anti Alternating Magnetic Field Shunt Split bend diverter

100~600 μΩ Anti Alternating Magnetic Field Shunt Split bend diverter

Haiyan Weijia Electrical Technology Co., Ltd.



Product:  Manganese copper shunt
Material:  Copper, manganese copper
Accuracy:  ± 5%
Process:  Electron beam welding, brazing
Production: Production and processing

main performance index：

◎ Resistance Coefficient：β：0.42~0.50

◎ Adaptation Temperature：-60℃~100℃

◎ Electron Temperature Coefficient：αβ： 3×10-5

◎ Resistance Calculation Formula：R=βL/S

* Manganese copper value: 100~600 μΩ
* Space between wiring hole: 21 mm
* Can meet the standard meter priorities： 0.5 mT of alternating magnetic field interference.
