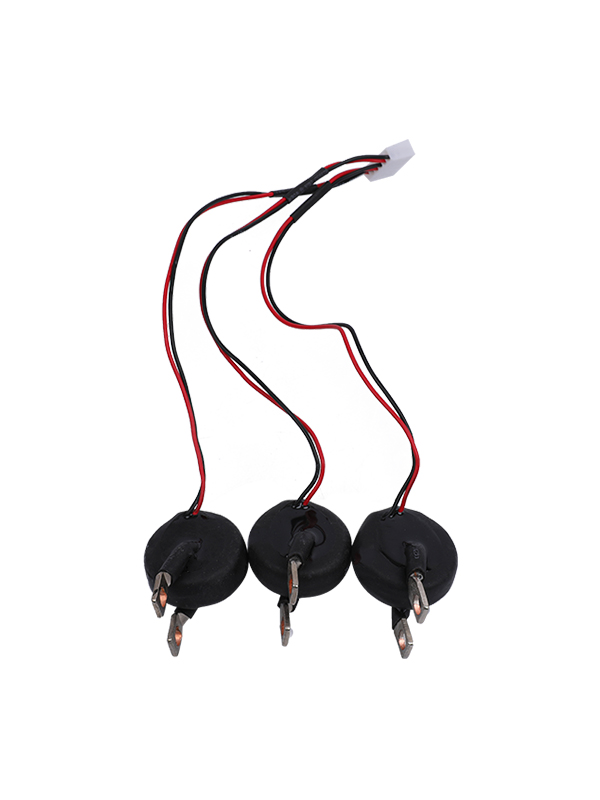

Three-phase DC Immune Anti-Magnetic Current Transformer

Three-phase DC Immune Anti-Magnetic Current Transformer

Three-phase DC Immune Anti-Magnetic Current Transformer

Haiyan Weijia Electrical Technology Co., Ltd.



Product:  Transformer
Material:  Copper, iron core, heat shrinkable tube
Accuracy:  0.1 level, 0.2 level
Process:  Bare bag, epoxy potting
Production: Production and processing
Voltage Transformation Principle: Electromagnetic Type
Winding Form: Single Layer & Tightly Wound Type
Insulating Medium: Epoxy Resin
Phase: Three
Application: Electronic, Electric Meter



Product Details

Encapsulation by epoxy, with high insulation ability, moisture-proof and vibration-resistant.

Application: All kinds of high precise instrument, meter, like medical meter, energy meter, test meter, and so on

Current Transformer with DC immunity main characteristics:
1. Adopt high magnetic permeability magnetic core, with high precision and good linearity and can resist DC component.
2. The range of applicable electric current is wide(5A-400A)
3. Primary input and secondary output ensure flexible and diversified forms as well as easy installation.
4. With a complete range of specification, products can be made according customers special requirements
Parameters and specification

Current Ratio Accuracy Rated Burden(Ω )
10(40)A/4mA
10(60)A/4mA
10(60)A/2.5mA 5
20(80)A/5mA 0.1, 0.2, 0.5 10
20(80)A/8mA 20
30(80)A/7.5mA
30(80)A/10mA
